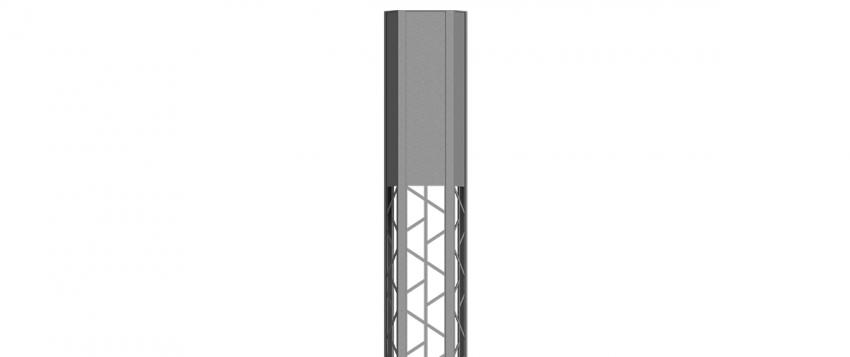

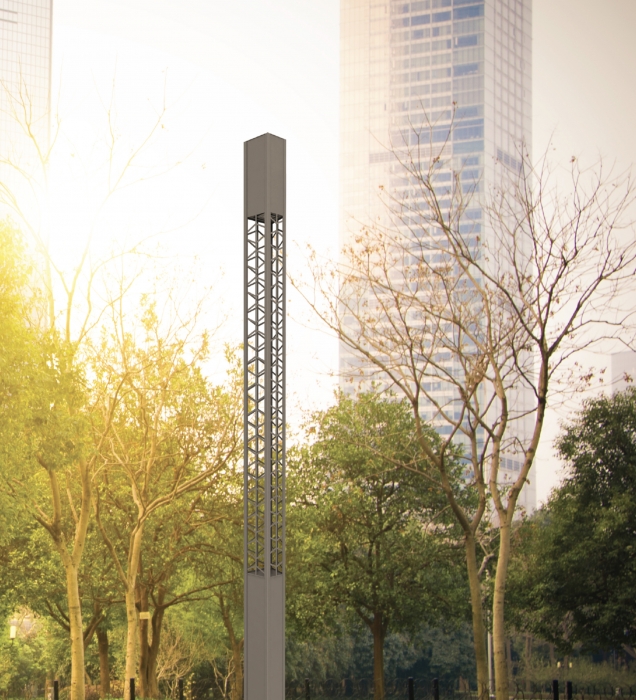

iRuta Skew with a range of customised shapes, ideal for lighting modern and architectural streets, squares, parks, public areas and entryways. A trapezoidal section column with decorative patterns highlighted with LEDs offers the joy of decor and lighting creativity.

Designed to last in extremely harsh environments.

LED Type High-efficiency LEDs, available in 2700K, 3000K, 4000K, 5000K, and 6500K CCT tolerance within a 3-step MacAdams ellipse and LM80 compliant.
Nominal Voltage    220V-240V AC, 50/60Hz
Color Rendering Index    CRI> 80 standard and CRI>90 on request.
Light Distribution    Rotationally symmetrical light distribution. 30°/ 60° / 90°
Materials    Corrosion resistant double layer polyester powder-coated paint finish die-cast aluminium housing, aluminium extruded column (EN AW-6060) with stainless steel screws (A4 grade) and silicone gaskets. The power unit is built in. Customizable patterns. Available in anthracite grey as a standard finish or any desired RAL colour.
Optional Coating    Marine grade.
Diffuser    Thermal-shock resistant tempered glass.
LED Specification.    L90B50 > 100000 hours lifetime.
Energy Efficiency Class (EEC)    A++
Operating Temperature    -40°C / +55°C
Power Factor    >0.95
Control Systems    DALI Interface.
Protection Class    IP65
Impact Resistance    IK08
Insulation Class    Class I
Conformity    Complies with European Standards EN 60598 and CE certified.
