GENERAL CHARACTERISTICS

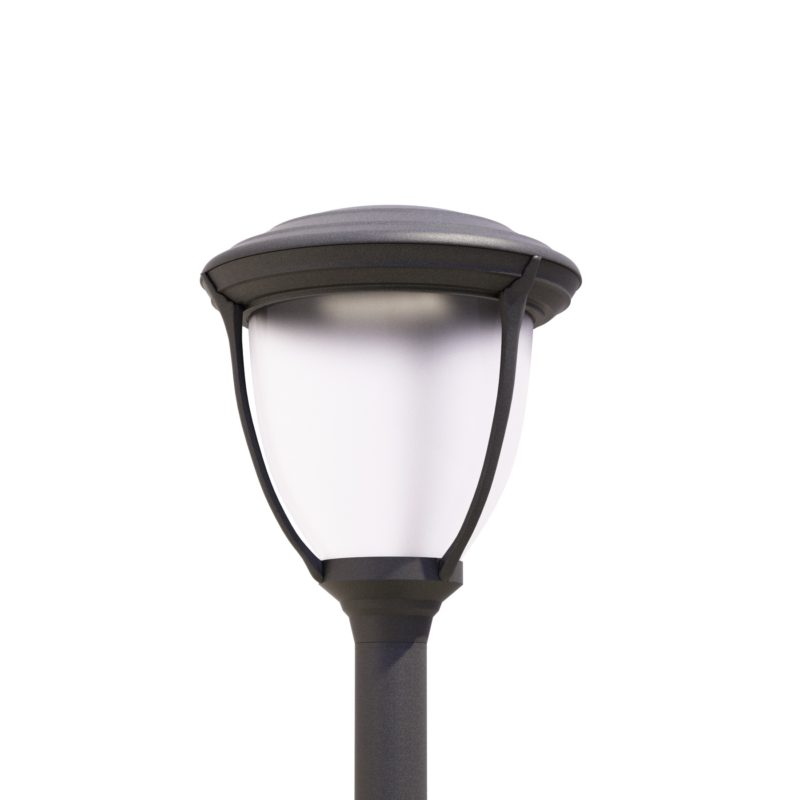

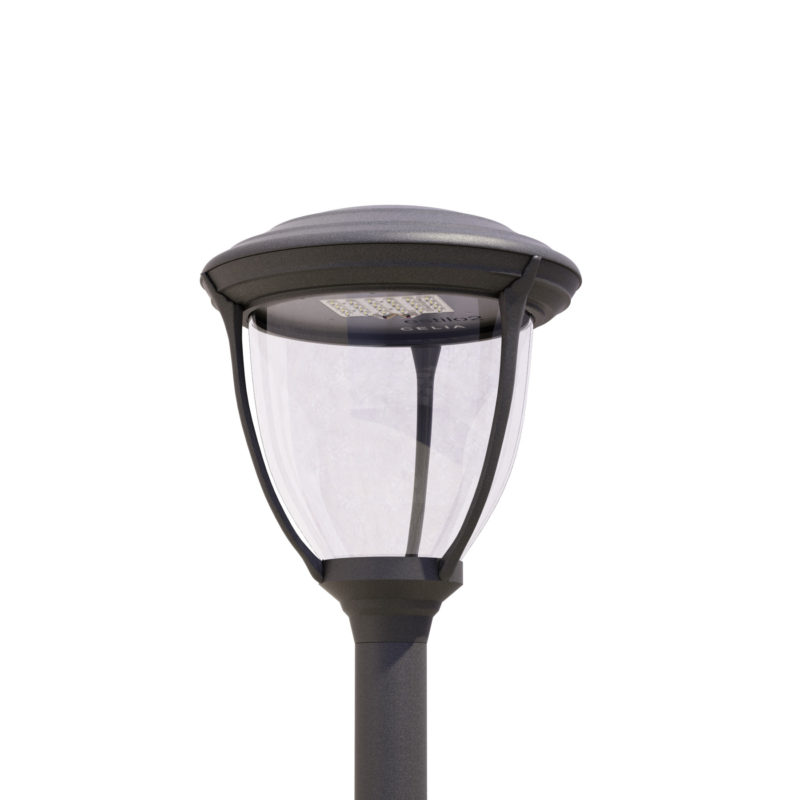

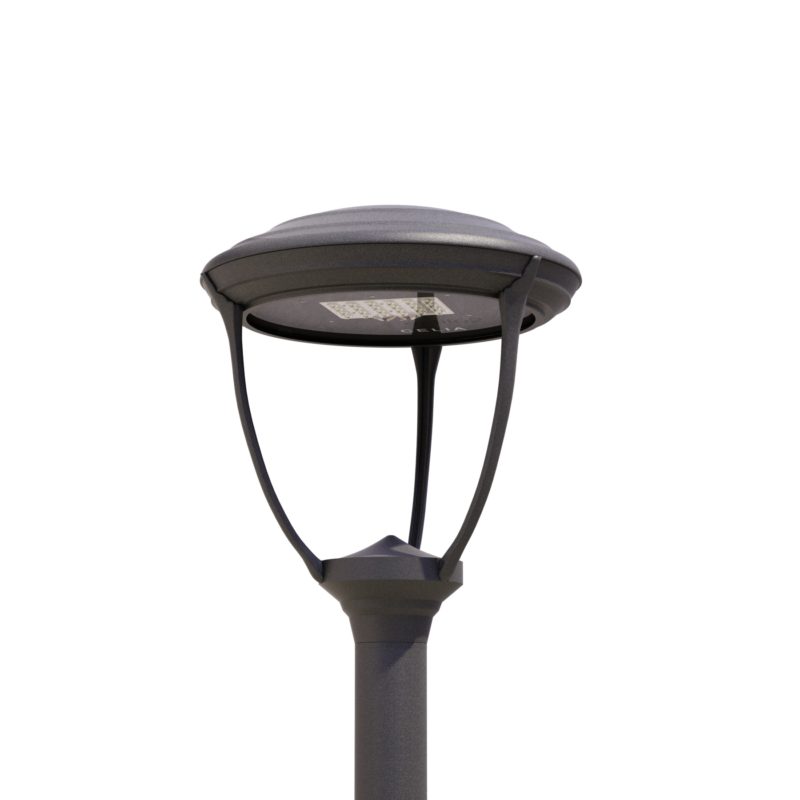

• Luminaire made of diecast aluminium.
• Closed with transparent (ref. TR) or translucent (ref. FR) injected polycarbonate diffuser or tempered glass (ref. LCE3) in order to ensure the IP and protect the characteristics of lenses used.
• Folding the upper or lower part depends on the version.
• Access to electrical components without the need for special tools facilitates maintenance.

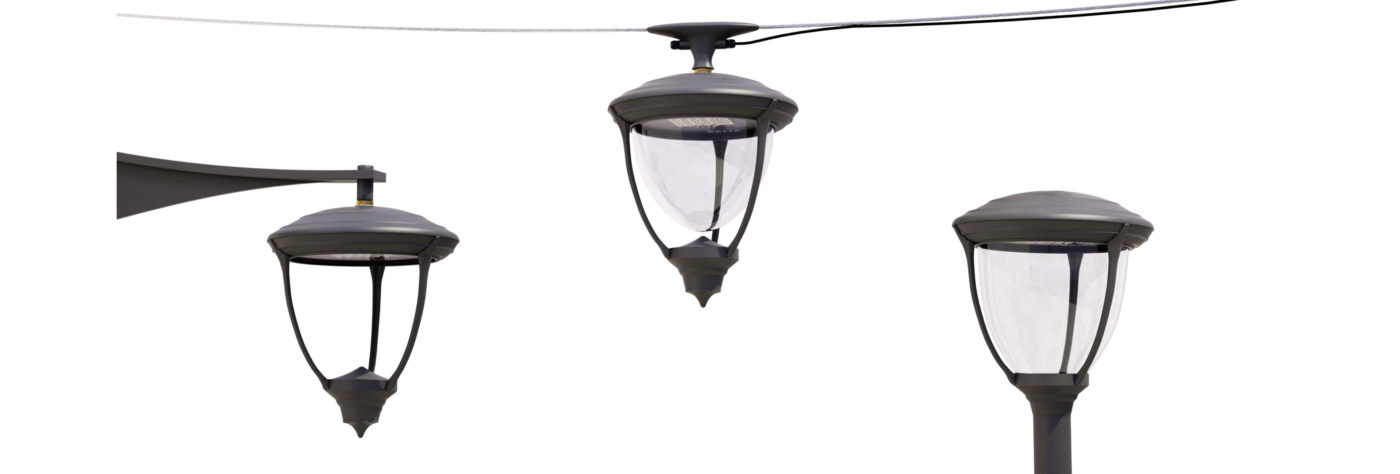

• Post top mounting pole Ø 60-76mm.
• Hidden hinge system.

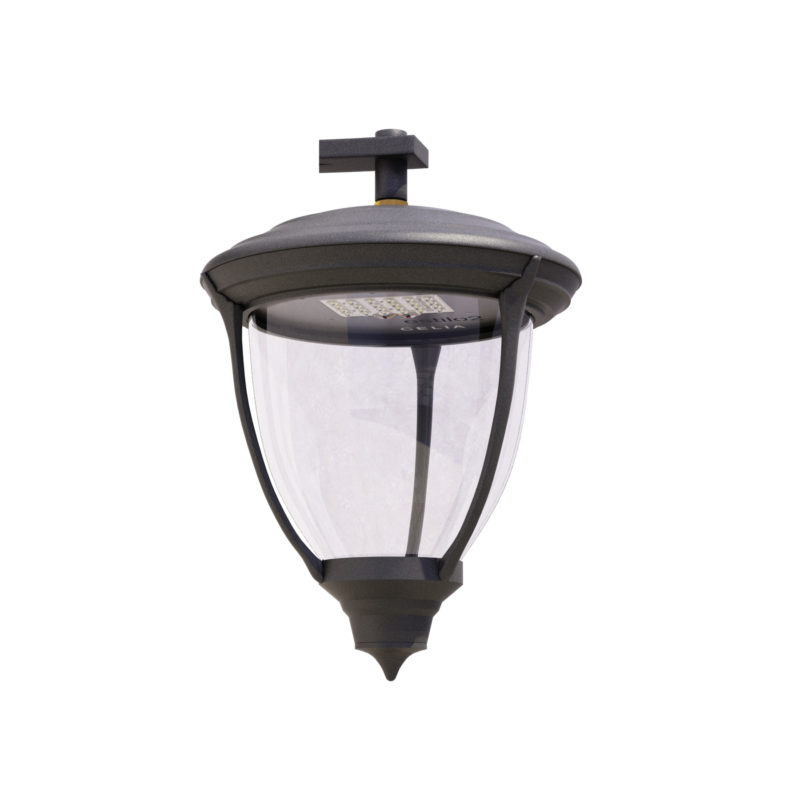

• Suspended mounting fitting by 3/4’’ thread.
• For other fixing needs please consult
• Available catenary suspension system for steel cable Ø up to 12 mm, with accommodation for connections IP65 (ref. 6).
• Luminaire Class I. Optional Class II.
• Optical group IP66.
• Electrical components IP66.
• Luminaire IP65, IK10.
• Available from 10W to 135W.
• Powder coated in any colour from the RAL chart or on a sample provided by the customer.
• Working temperature -45ºC to +70ºC.
